System Product Introduction

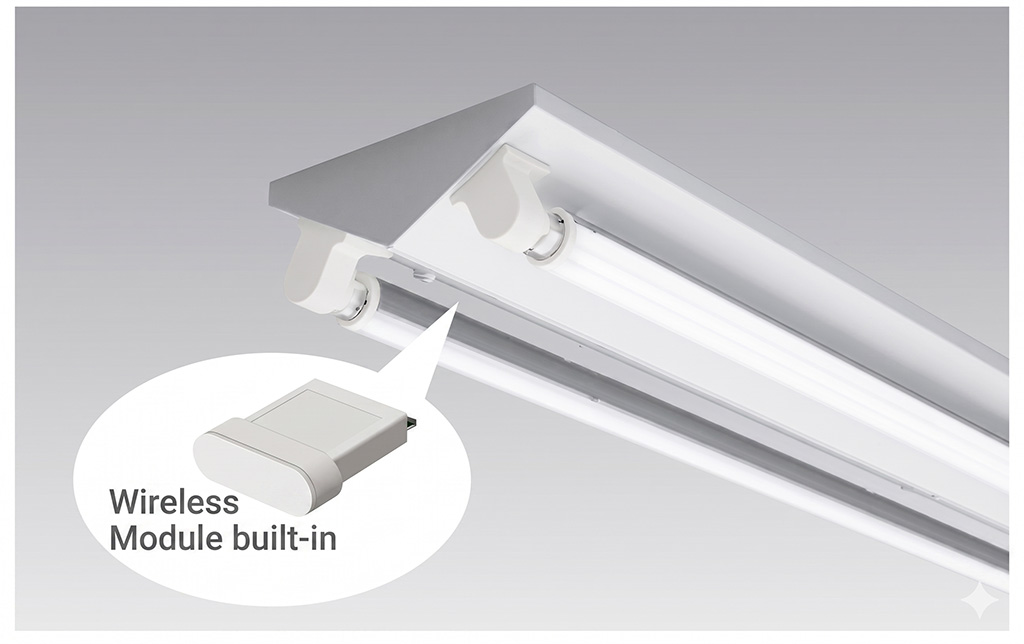

These are lighting fixtures equipped with a wireless module. Depending on the fixture’s structure, the wireless module may be built into the fixture or be external.
Please use lighting fixtures that are listed as “wireless dimming type” in our catalog.
Wireless modules should be installed within a 25m radius of each other, where there is a clear line of sight.

This device manages the time on a mesh network, enables Wi-Fi connectivity from tablets and smartphones, and allows for the backup and restoration of configuration data.

There are two modes: illuminance sensor mode and motion sensor mode. You must select one mode when using it. Both modes cannot be used simultaneously. Because it has a built-in wireless module, please install it within a 25m radius of other wireless module-equipped devices, ensuring a clear line of sight.

In illuminance sensor mode, only one unit can be used per group; in motion sensor mode, up to 10 units can be used per group.

This remote control handset allows you to recall pre-set scenes. Up to 6 scenes can be registered with a single remote.
Since this device has a built-in wireless module, please install it within a 25-meter radius of other devices with built-in wireless modules, ensuring a clear line of sight.
Up to 10 units can be used in one system.

This device can control our phase-dimming type LED lighting fixtures and LED lamps. It can connect to loads up to 300VA. A ceiling mounting hole diameter of φ75 is required.

<Tablet-type controller>
This is a tablet-type controller specifically designed for this system.

<Wall-mounted power adapter>
The controller can be stored and charged on the wall.

Note: Regarding construction
Please install power switches on lighting fixtures and gateways. Ensure that the gateway, sensors, and wall-mounted remote control are powered 24 hours a day.
Furthermore, the sensor should be installed on a separate circuit from the lighting fixture, and no power switch should be attached.

This unit incorporates a voltage-free normally open (a) contact relay.

It can be connected to an AC100V remote circuit breaker. It can also be connected for contact control to other DC30V control equipment.
This is used when you want to turn on/off or schedule the operation of non-wireless devices such as outdoor lighting.

This unit converts and outputs a PWM signal.
This is used when you want to control lighting fixtures that use PWM signal control.
One unit can connect to and control up to 50 PWM signal-enabled lighting fixtures.

This unit relays communication when a clear line-of-sight radius of 25m between devices cannot be secured. There are restrictions on installation; please refer to the instruction manual for details. For system registration, please use proximity scanning.

This repeater converts wireless signals to wired signals. It can also directly input PWM wired signals. The wired signal connects to our wired-control type LED lighting fixtures. All lighting fixtures connected to the wired repeater will have the same settings (color temperature/pale color/Duv/dimming rate). It is not possible to connect dimmable, dimmable color-tunable (Tunable), or Synca type lighting fixtures together. Please refer to the wired repeater’s instruction manual for details.

It works in conjunction with Smart LEDZ Fit/Fit Plus, allowing for arbitrary scene control based on contact signals.

A ceiling mounting hole diameter of φ75 is required.
Up to 10 remote controls can be used in one system.
