■ About control using sensors
Sensor control in this system requires the following: sensor calibration (setting surface reflectance and fade time), and registering sensors to a group setting sensor mode, group settings and sensor pattern settings).
You can create up to 5 sensor groups.
When using illuminance sensor mode, you can register up to 1 sensor per group. When using occupancy sensor mode, you can register up to 10 sensors per group.
The sensor is controlled by selecting either motion or illumination mode, and then setting the control pattern and associated parameters to operate in a [mode x pattern] combination. The lighting fixture should be turned on/off using the wall switch.
■ Sensor Mode
・Illuminance sensor mode
The dimming rate is controlled so that the light from the lighting fixture + ambient light equals the target illuminance.

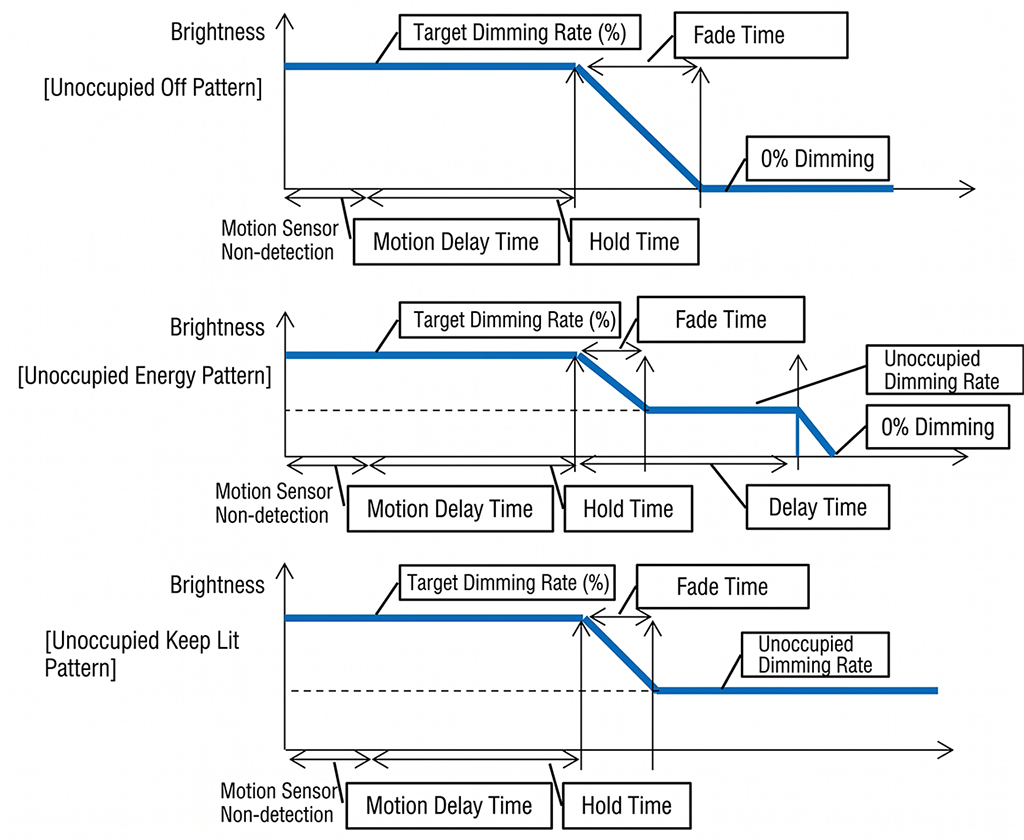

• Motion sensor mode
After detecting human presence, the lights will turn on at the target dimming level, and subsequent operation will vary depending on the pattern.
