Operate individually [Individual/Group Operation]

You can adjust the brightness/color temperature of the lighting individually.

1

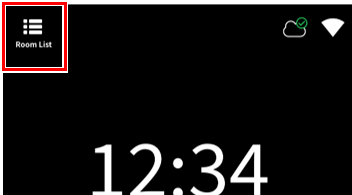

Tap “Room List.”
(If using the smartphone app, start from step 2.)

2

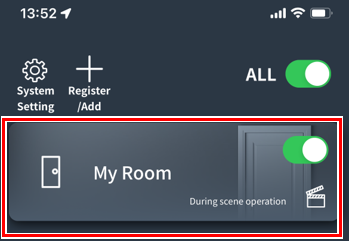

Tap the room you want to adjust.

3

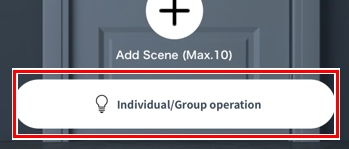

Tap “Individual/Group Operations.”

4

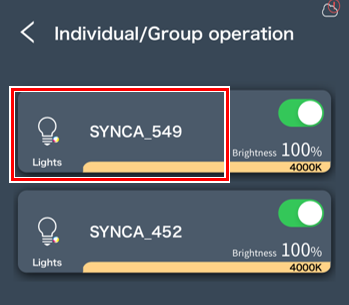

Tap the light (or group) you want to adjust.

*If you don’t know which light it is, try turning it off/on to find it.

You can also group

If you have a large number of lights and it is difficult to operate them, you can make it easier to operate them by grouping multiple lights.

link

5

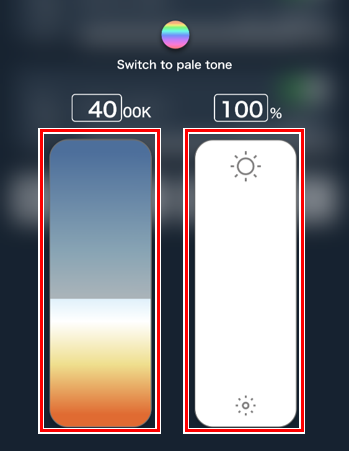

When you tap a light

The slider on the left controls the color temperature, and the slider on the right controls the brightness.

※detail:link
*The operation screen may differ depending on the type of lighting.

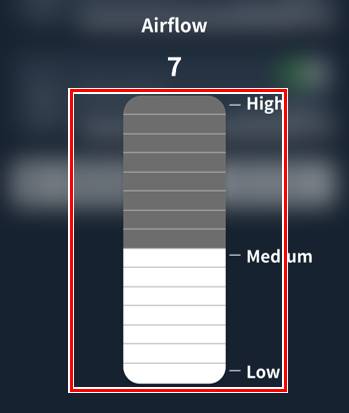

If you tap Furyu

The slider allows you to adjust the fan’s airflow in stages.

*You can adjust the volume in 15 steps, excluding stop.
*To display this slider, the target device must be identified as a Furyu.link.

6

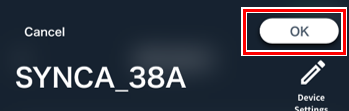

Tap “OK.” This completes the adjustment.

More precise adjustments are also possible

If you use “Synca” lighting, you can change the color (pale tone) and adjust the color tone (DuV).

link
