This is an explanation of the setting screen for the remote control/smart switch buttons or sensor operation.
A Not set
Select this if you want the setting to be empty.

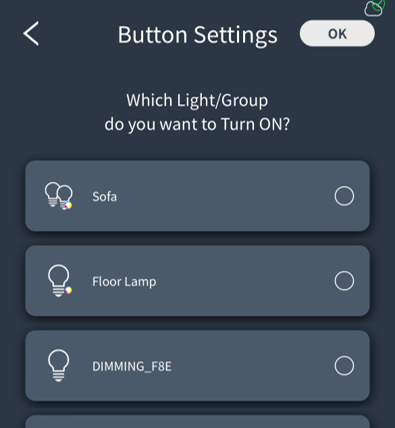

B Light/Group ON
You can assign any one light/group.
After selecting, tap “OK”.
*The light will turn on at the same brightness/color temperature as before it was turned off.
*Lights/groups in other rooms cannot be assigned.
C Playing a scene
You can assign one of these scenes.
After selecting, tap “OK”.
*You cannot assign a scene to another room.
*In the case of sensor (brightness mode), the color temperature of all lighting will be uniform (*1).
(※1) The color temperature is the average value of the color temperature settings for each lighting/group in the target scene.

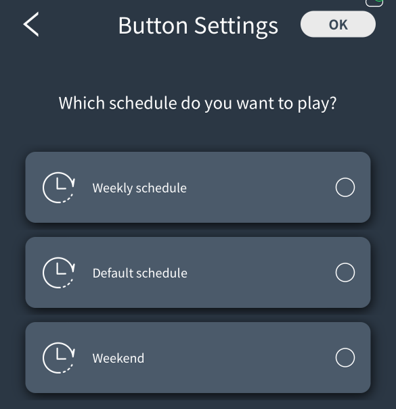

D Schedule playback
You can assign one of the schedules.
After selecting, tap “OK”.
*You cannot assign a schedule that is in another room.
*In the case of sensor (brightness mode), the color temperature of all lighting will be uniform (*1).
(※1) The color temperature is the average value of the color temperature settings for each lighting/group in the target scene.
E Room ON
Turns on all lights in the room to which the peripheral you are configuring belongs.
*You cannot assign a different room or ALL ON/OFF.
