Basic Concept
The Smart LEDZ Base is a system that allows you to wirelessly control individual lights.
A
First, create a virtual container called a “room.”
By registering “lighting and peripheral devices” in it, you will be able to control them.
For example, create a room for each room, such as a “kitchen,” “living/dining room,” or “Japanese-style room.”
B

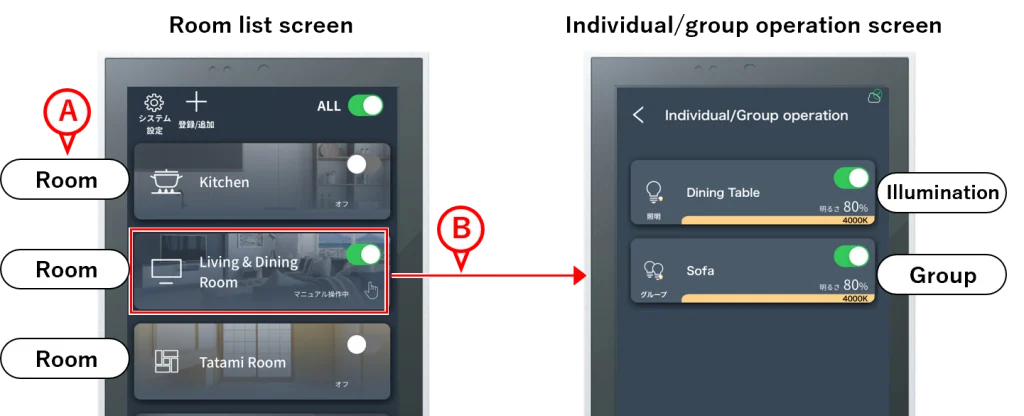

By entering a room with the Base app, you can operate the rooms individually and call up scenes, etc.
C

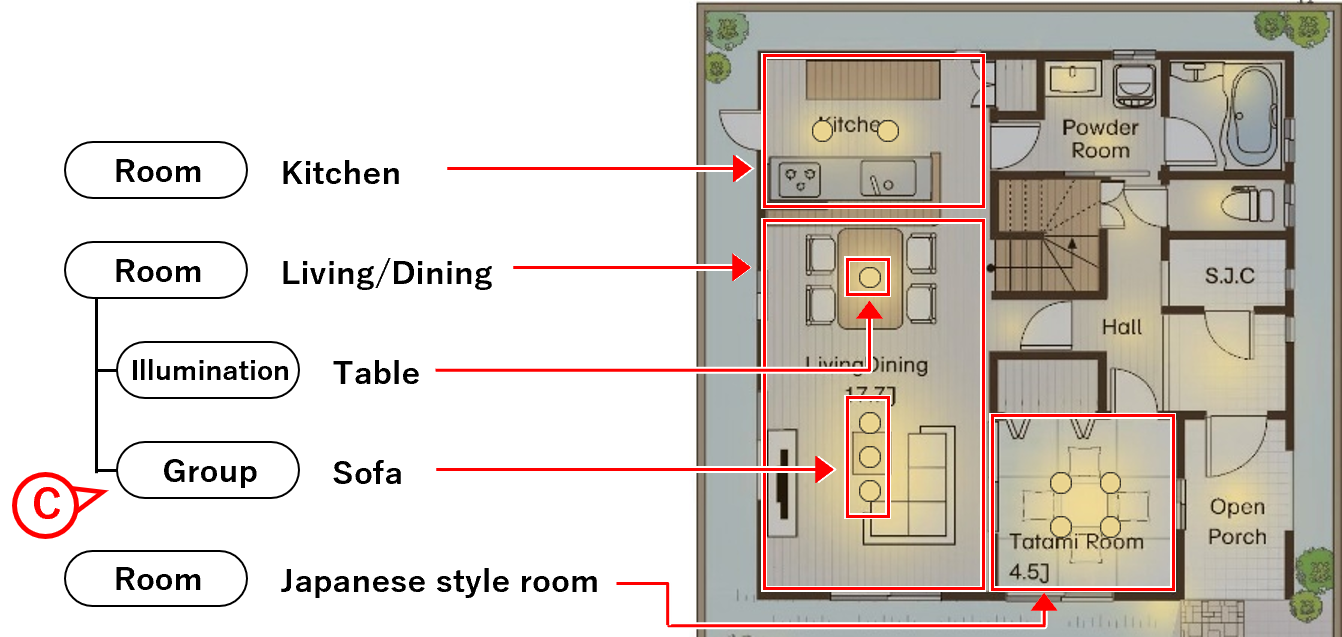

You can also group multiple lights in a room together.
For example, if you have three downlights above a sofa, grouping them all together as a “sofa” makes it easy to operate them all at once.

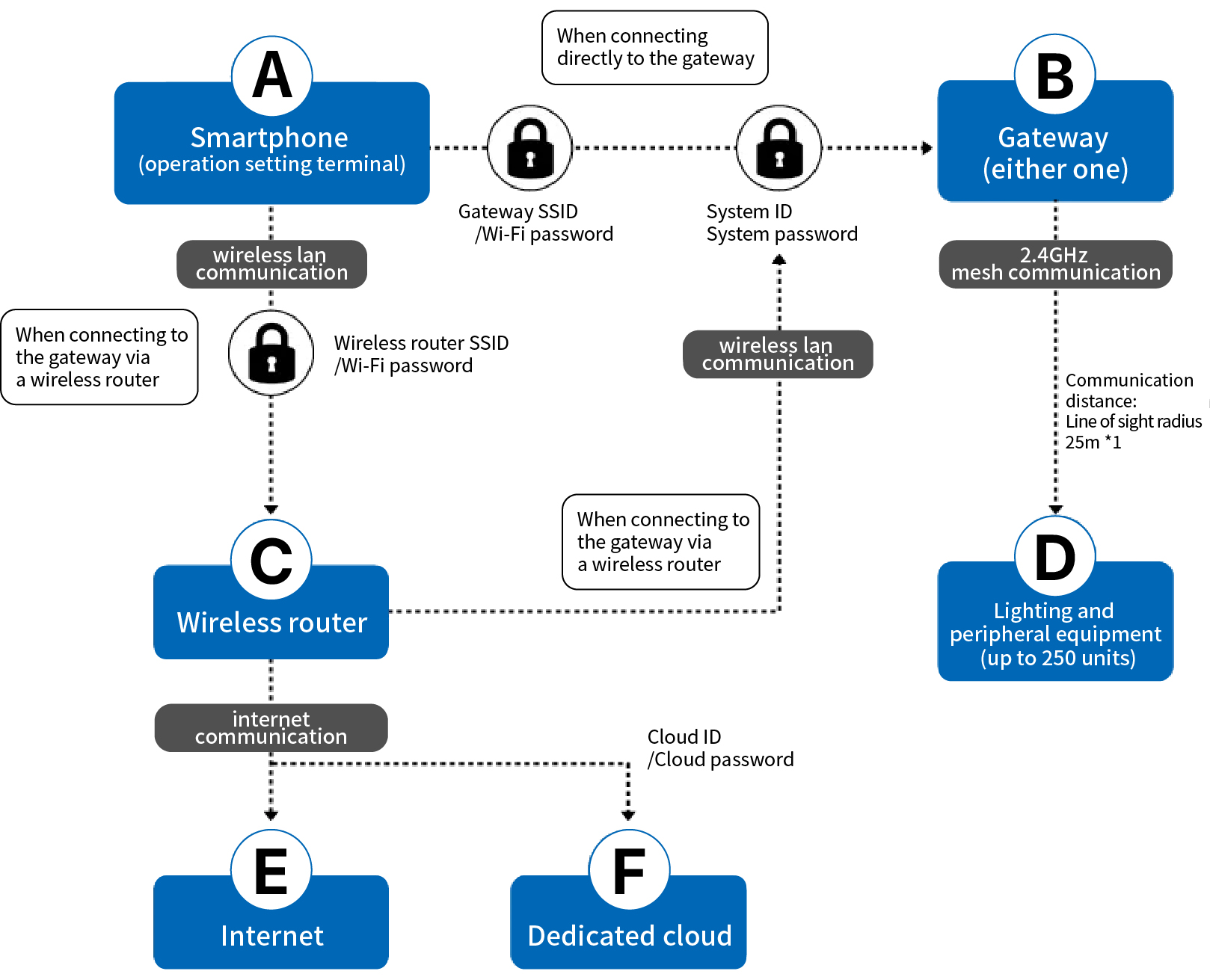

system configuration diagram
A Smartphone (operation setting terminal)
Commercially available smartphones
・iOS or Android
・Base app must be downloaded
*Supported OS: iOS 15-17, Android OS 9-14
*Operations have been checked on representative smartphones that support the supported operating systems. Depending on the smartphone you are using, there may be limitations on some screen displays and functions.
* Operation has not been confirmed on tablet devices. There may be restrictions on single-screen display and functionality.
B Gateway (either one)
Gateway panel
AC100V (24-hour power supply)
Gateway switch
AC100V (24-hour power supply)
C Wireless router
- DHCP server function included
- Wi-Fi IEEE802.11 b, g, or n compatible
- Supports WPA and WPA2 encryption standards
- Disable the function that restricts communication between devices (separator function)
D Lighting and peripheral equipment (up to 250 units)
Wireless lighting fixtures (lighting)
AC Input
AC Input
Base peripherals
Handy remote control *2
Smart single switch *3
AC100V (24-hour power supply)
Smart double switch *3
AC100V (24-hour power supply)
Smart sensor switch *3
AC100V (24-hour power supply)
Control Equipment
No-voltage a-contact unit
AC100V-242V (24-hour power supply)
PWM signal unit
AC100V-242V (24-hour power supply)
Phase dimming unit
AC100V (24-hour power supply)
Repeater
AC100V-242V (24-hour power supply)
E Internet
It provides the following features:
- Internet Time Synchronization
- Software Updates
F Dedicated Cloud
It provides the following features:
- Cloud Backup/Restore
- Smart speaker integration
*1) The maximum distance varies depending on the installation environment.
*2) The maximum communication distance for the handheld remote control is 20m.
*3) The power cannot be turned on/off with smart switches or smart sensor switches. If power control is required, install a separate wall switch.
*4) If the wireless router is not connected to the Internet, the following functions will not be available:
Internet time synchronization
・software updates
・cloud backup/restore
・and smart speaker integration
Even if you are not connected to the Internet, you can still connect, operate, and configure your smartphone and gateway via the wireless router.
