The following explains using the smartphone app screen.
Configure the button
This is a method to assign your favorite scene recall or lighting control to the smart switch buttons.
1
Tap the room that contains the smart switch you want to configure.
2
Tap “Menu.”
3
4

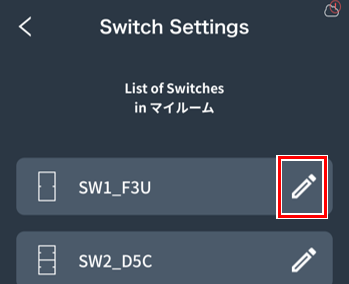

A list of switches will be displayed.
Tap the edit button for the switch you want to configure.
5
The Switch button settings screen will open.

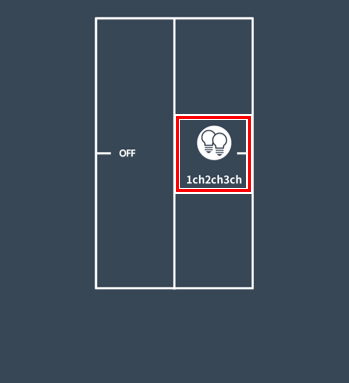

Tap the button you want to assign.
6

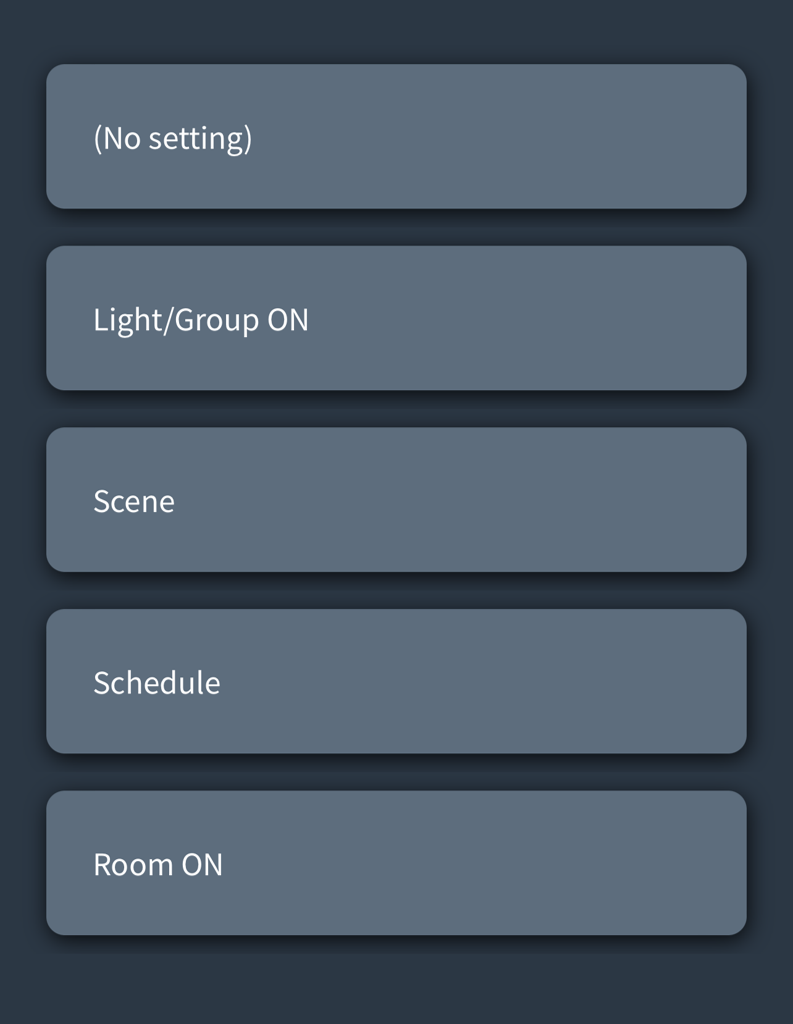

Select the action you want to assign to the button
About the button settings screen:link
7
Once you have assigned all the buttons, tap “Save.”
Your button settings are now complete.
Change name/Check information/Initialize
1
Refer to steps 1 to 5 in “Setting the Buttons” on this page to open the button settings screen for the switch.
2

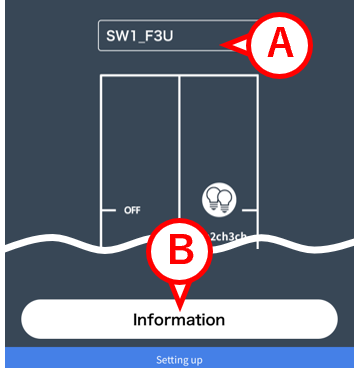

If you want to change the name of the switch, tap A , enter the name, then tap “Save” to complete.
If you want to check the information or reset it, tap B.
3

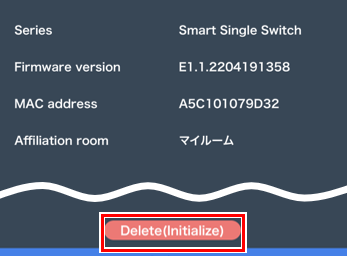

The information screen opens
You can check various information about the switch.
You can reset the switch by tapping “Delete (Initialize)”.
